Soft Flexible DIY LED Display Modules 3D P6.6 / P8 / P10 Multi Color 10000 dots / ㎡
Product Description:
Various style:Soft characteristics to diversify its shape.
Easy installation:magnet attached installing which is simple and quick.
Convenient maintenance:fast assemble and disassenble,make the maintain convenient.
Application

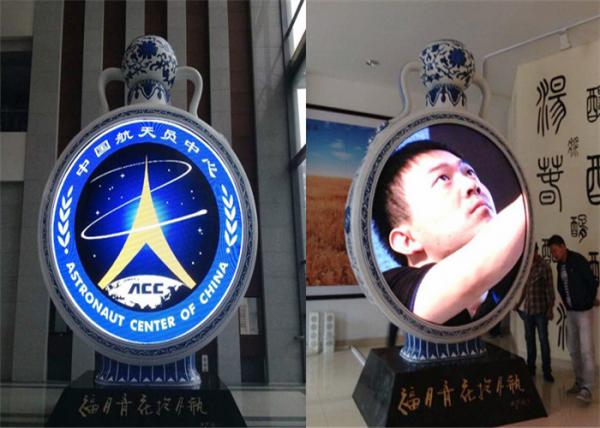

Widely used in science and technology museum,museums,galleries,lounges,hotels, higt-speedrailway stations,subway stations,shopping malls,bars and other places.The new forms of performance makes it a strong visual impact that audiences can never forget.
Technological Parameters:
| Specification | PH10 | PH6.67 | PH6 |
| Pixel Pitch(mm) | 10mm | 6.67mm | 6mm |
| LED Encapsulation | SMD3528 |
| Pixel Density(dots/㎡) | 10000 | 25600 | 27777 |
| Module resolution(dot*dot) | 32*16 | 48*24 | 48*32 |
| Module size(mm) | 320*160 | 320*160 | 288*192 |
| Scan method | 8 scanning |
| Screen brightness (cd/㎡) | >1100 | >2800 | >3400cd |
| Average power consumption(W/㎡) | ≤250 | ≤550 | ≤600 |
| Maximum power consumptio(W/㎡) | ≤510 | ≤1100 | ≤1200 |
| Best viewing distance(m) | 10 | 6 | 5 |
| Driving method | Constant current |
| Color show | 17M～69G |
| Brightness adjusted | 256 gray grade |
| Gray correction | 256～4096 |
| Refresh rate | 400～1500HZ/S |
| Frame frequency | >60HZ |
| Interface port | VGA+DVI Graphic card |
| Display mode | 1024×768,1280×960,1920×1200,2048×640 |
| Control mode | Led display and computer is dot by dot |
| Communication distance | Cable 5≦130m, single mode fiber≦10km |
| Vedio source | TV ,VCD,DVD |
| Continuous use time | >72 hours |
| Life span | >100,000 hours |
| Scatter OOC Point | <0.01% |
| Continuous OOC Point | No |
| Working temperature | -35℃～+60℃ |
| Working humidity(RH) | Indoor 10～60% |
LED display panel, flexible led display panel, led panel module
We feel very glad to inform that our new breakthrough in technology, flexible P10mm SMD3in1 indoor full color led display module. Through repeated tests and research and by adopts most high quality materials, we have adopted this unique product with a complicated and scientific design both electronics and structures. It make a new progress in LED display module technology.
Detailed introduction of it
Such type of led module is super thin, very light weight and most flexible to design shapes, effects, in any types, arc in any angles. With repeating curving, it won't break LEDs as well design of mask covers.
You can also make your own design of the structure frame. Our engineers are also available to help you design structure at the shape you need.
It is easy transport and save much cost of shiping.
1. Connecting Christmas tree shape with LED display to give a unique and attractive playing effect to the audience.
2. Adopting distributed scanning mode and modular design technology, has high stability and reliability.
3. High gray scale and high refresh design to ensure the zero delay and image tail of video playing.
4. It is popular used in Christmas decoration, such as in shopping mall, Commercial Street, and square. It not only act as light decoration but also a tool to make advertising.
